FEATURES

• Integrated CUTLINE™ Blade Positioning System provides adjustment free cut line indication for better accuracy and visibility

• Powerful 15 amp, 3,800 rpm motor delivers extended power and durability

• Super efficient dust collection system captures over 75% of dust generated

• Tall sliding fences support crown molding up to 7-1/2 in. nested and base molding up to 6-3/4 in. vertically against the fence while easily sliding out of the way for bevel cuts

• Exclusive back fence design cuts up to 2x16 dimensional lumber at 90° and 2x12 at 45°

• Adjustable stainless steel miter detent plate with 10 positive stops improves productivity and ensures cutting accuracy

• Miters 60° to the right and 50° to the left providing increased capacity

• Oversized bevel scale makes bevel angle adjustments accurate and easy

• Compact, lightweight design (56 lbs.) allows for easy transport and storage

• Cam lock miter handle with detent override deliver quick and accurate miter angles

• Dual horizontal steel rails with innovative clamping mechanism and linear ball bearings deliver an accurate, durable and compact saw

• Innovative gearbox and belt-drive design increases vertical cutting capacity

• Precise miter system and machined base fence support optimize durability and cutting accuracy

SPECIFICATIONS

•
  45° BEVEL CUT CAPACITY (DIMENSIONAL LUMBER) 2X14 (2X16WITH BACK FENCE)

•
  45° MITER CUT CAPACITY (MAX HEIGHT) 4X8

•
  45° MITER CUT CAPACITY (MAX WIDTH) 4X8

•
  90° CROSS-CUT CAPACITY (DIMENSIONAL LUMBER) 2X14(2X16 WITH BACK FENCE) IN

•
  90° CROSS-CUT CAPACITY (MAX WIDTH) 14" (16" W/ SPECIAL SETUP)

•
  AMPS 15 AMPS

•
  ARBOR SIZE 5/8" OR 1 IN

•
  BLADE DIAMETER 12"

•
  FOR METAL CUTTING NO

•
  FOR WOOD CUTTING TRUE

•
  HANDLE TYPE TOP HANDLE

•
  HORIZONTAL CAPACITY: BASEBOARD LYING FLAT 16 IN

•
  HORIZONTAL CAPACITY: CROWN MOLDING LYING FLAT 13-3/4 IN

•
  NO LOAD SPEED 3,800 RPM

•
  POWER TOOL TYPE CORDED

•
  TOOL WEIGHT 56 LBS

•
  TYPE OF MITER SAW SLIDE

•
  VERTICAL CAPACITY: BASEBOARD AGAINST FENCE 6-3/4 IN

•
  VERTICAL CAPACITY: CROWN MOLDING VERTICALLY NESTED 7-1/2 IN

INCLUDES

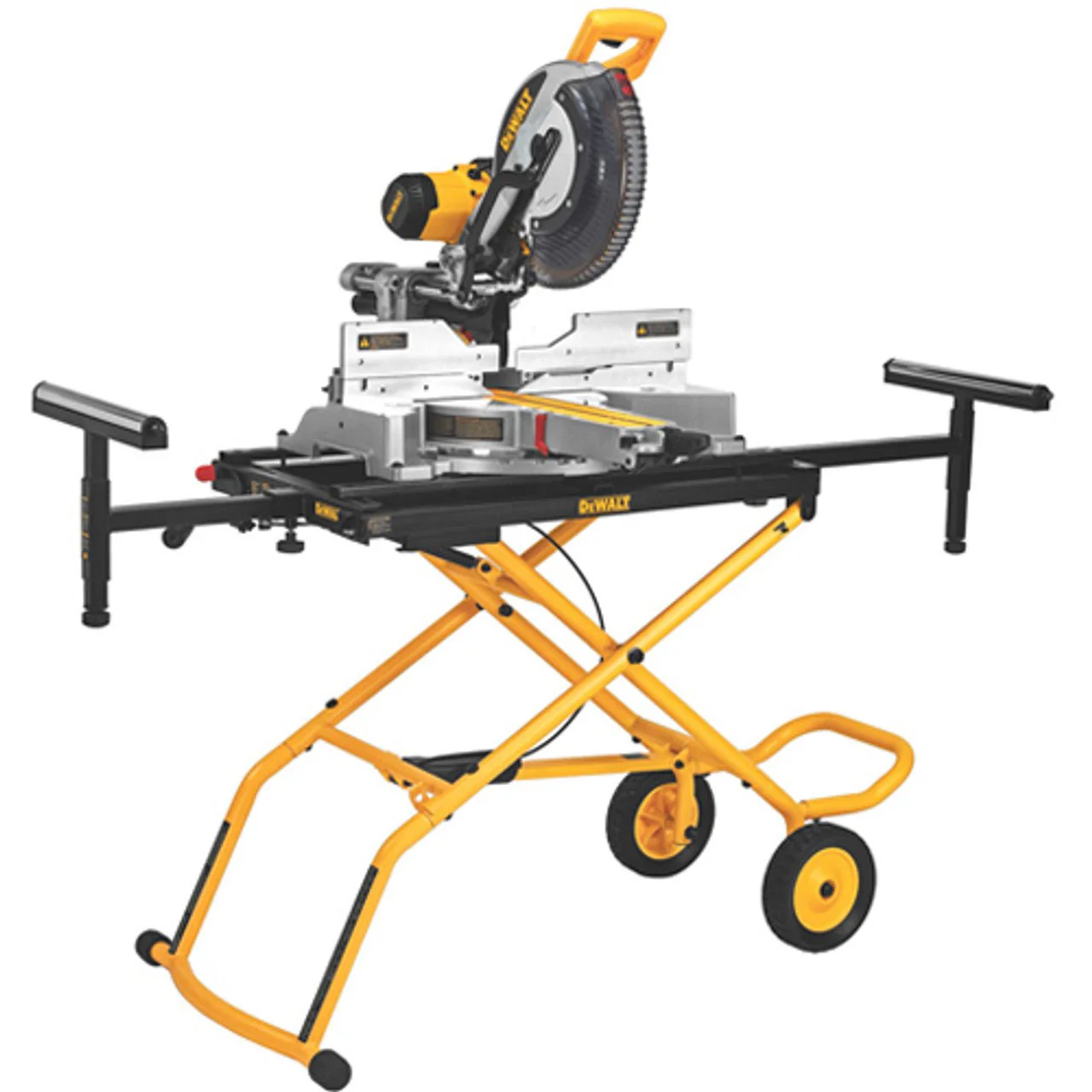

• DWS780 12 in. Miter Saw

• Blade wrench

• Dust bag

• Vertical material clamp

• 12 in. Carbide Blade

• Rolling Stand DWX726
